MYC-Y7Z010/20-V2 CPU Module

The MYC-Y7Z010/20-V2 CPU Module is an industrial-grade, Linux-ready System-on-Module (SoM) based on the Xilinx Zynq-7000 SoC. It features a dual-core ARM Cortex-A9 processor (up to 866MHz), integrated Artix-7 FPGA, 512MB DDR3, 4GB eMMC, and 16MB QSPI Flash. Designed for industrial applications, it supports a wide temperature range of -40 to +85°C, making it ideal for embedded systems in harsh environments..

  • Detail
  • Special Features
  • Specification

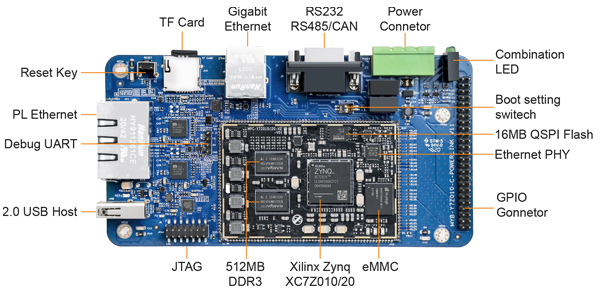

The MYC-Y7Z010/20-V2 CPU Module is a high-performance embedded solution based on Xilinx's Zynq-7000 family of SoCs. This module integrates a dual-core ARM Cortex-A9 processor along with a powerful Artix-7 FPGA for flexibility in handling both software and hardware tasks. It offers substantial memory with 512MB DDR3 and 4GB eMMC, along with 16MB QSPI Flash, ensuring reliable performance for various embedded applications. The module supports an industrial temperature range, making it suitable for demanding environments such as industrial automation, medical equipment, and intelligent video surveillance. With the onboard Gigabit Ethernet PHY and comprehensive expansion interface, this module allows for easy integration into custom baseboards for specific project needs.

  • Processor:

    • Xilinx Zynq-7010 (XC7Z010) or Zynq-7020 (XC7Z020)

    • Dual-core ARM Cortex-A9 processor (up to 866MHz)

    • Integrated Artix-7 FPGA

  • Memory:

    • 512MB DDR3 SDRAM

    • 4GB eMMC storage

    • 16MB QSPI Flash

  • I/O Expansion:

    • 180-pin Stamp Hole Expansion Interface

    • Gigabit Ethernet, USB, Serial ports, I2C, CAN

  • Peripherals:

    • External watchdog

    • Three LEDs for status indicators

  • OS Support:

    • Linux 4.14

  • Temperature Range:

    • -40~85°C (industrial grade)

  • Processor:

    • Xilinx Zynq-7010 (XC7Z010) or Zynq-7020 (XC7Z020)

    • Dual-core ARM Cortex-A9 (up to 866MHz)

    • Integrated Artix-7 FPGA

  • Memory:

    • 512MB DDR3

    • 4GB eMMC

    • 16MB QSPI Flash

  • Peripherals:

    • Gigabit Ethernet PHY

    • USB 2.0

    • 2x CAN

    • 2x I2C

    • 2x SPI

    • 2x Serial Ports

  • I/O Expansion:

    • 180-pin Stamp Hole Expansion Interface

  • Power Supply:

    • 5V

  • OS Support:

    • Linux 4.14
